| Pressão: | 2000-20000 libras por polegada quadrada | Classe material: | AA, BB, CENTÍMETRO CÚBICO, DD, EE, FF, HH |
|---|---|---|---|
| Uso: | Energia & mineração | Tamanho: | 3 3/4" (95.3mm) ~26" (660.4mm) |
| Vantagem: | De grande eficacia | Lugar de origem: | China |
| Destacar: | Oilfield API Casing Hanger,5 1/2" API Casing Hanger,10000Psi Drill Casing Hanger |
||

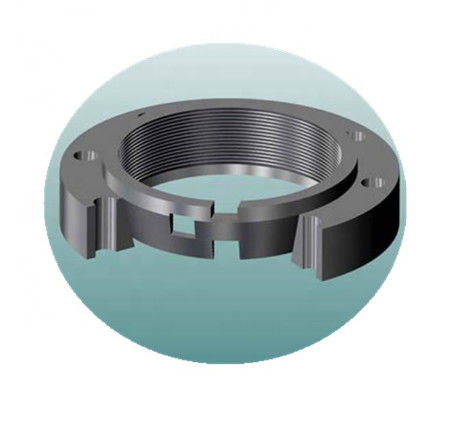

5 1/2" Oilfield API Standard Casing Hanger System for Wellhead 10000 psi
Product Descrption
Surface casing hangers are landed in the same manner as nonlatching models and do not require any special tools. Available in locking or non-locking configurations, the latching mechanism anchors the surface casing and prevents upward movement if the casing becomes buoyant during cementation.

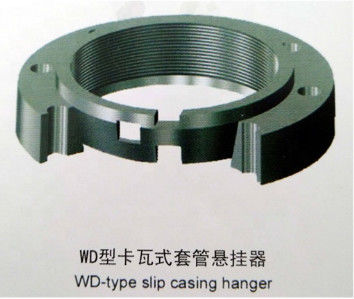

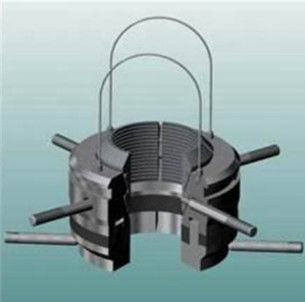

There are two major types of casing hangers, i.e.the threaded (mandrel) type and the slip-type. The slip-type casing hanger comprises a number of models such as G.W. WD and WE. The model WD hangers are used to connect the casing head with the surface casing .when connected to the casing .the slip teeth of the hanger close tightly around the casing by the use of outer force. The model W hangers are structured to enable the dead-weight of the casing to energize the seal to function. Both the model WE and model G hangers operate by energizing the seal manually.
Basic Advantages of Our Wellhead Casing Hanger
Technical Parameters of TR Wellhead Casing Hanger
| Rated operating pressure psi(MPa) |
Nominal bore diameter in(mm) |
Bypass bore diameter in(mm) |
Outer diameter of the casing for the hangerin(mm) |
| 2000(13.8) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 3000(20.7) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 5000(34.5) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 10000(69.0) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 15000(103.5) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 20000(138.0) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
Xi'An TianRui Petroleum Machinery Equipment Company is a professional solid control manufacturer and supplier of various oilfield equipment, which has API 6A,ISO9001,14001,OHSAS 18001 and so on. Main products include solid control equipment, oil drilling and service equipment, oil production equipment, OCTG ,wellhead gate, Christmas tree, kill and chock manifold & downhole tools and spare parts with API certification. Our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). Sino Petro company has become VIP (assigned) supplier and built strategic partnership with some coutries' national petroleum companies.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
