Detalhes do produto:
Condições de Pagamento e Envio:
|
| Pressão: | 2000-20000 libras por polegada quadrada | Tamanho: | 3 3/4" (95.3mm) ~26" (660.4mm) |
|---|---|---|---|
| Classe material: | AA, BB, CENTÍMETRO CÚBICO, DD, EE, FF, HH | Nível da especificação: | PSL1-PSL4 |
| Garantia: | 12 meses | Uso: | Energia & mineração |
| Destacar: | WD Type Oilfield Casing Hanger,Carbon Steel Oilfield Casing Hanger,3 3/4" Drill Spare Parts |
||

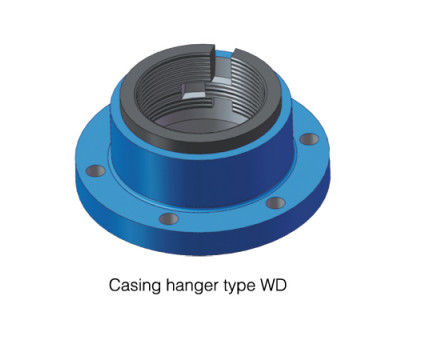

Carbon Steel WD Type Casing Hanger for Oilfield Wellhead
Product Descrption
Surface casing hangers are landed in the same manner as nonlatching models and do not require any special tools. Available in locking or non-locking configurations, the latching mechanism anchors the surface casing and prevents upward movement if the casing becomes buoyant during cementation.
Our products could match the following brand:
FMC, CAMERON, CONTROL FLOW, DKG, DRILLQUIP, CE, VECTOGREY, WEATHERFORD, WEIRSEABOARD,WOOD GROUP, WOM, STREAM FLO. EXPRO, MI SWACO, T3.
Basic Characterstics of Our Wellhead Casing Hanger
Main Parameters of TR Wellhead Casing Hanger
| Rated operating pressure psi(MPa) |
Nominal bore diameter in(mm) |
Bypass bore diameter in(mm) |
Outer diameter of the casing for the hangerin(mm) |
| 2000(13.8) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 3000(20.7) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 5000(34.5) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 10000(69.0) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 15000(103.5) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 20000(138.0) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
Xi'an TianRui Petroleum Machinery Equipment Company Limited mainly engages in offering oil drilling and production equipment and providing oilfield technical service. Our target is to supply our products and spread company culture to all over the world. We will build a new stage, and we will welcome all the friends from all over the world, to cooperate sincerely and create our brilliant future!
Xi'an TianRui Petroleum Machinery Equipment Company Limited had explored the international market and enlarged international cooperation 10 years .Due to the competitive price ,good quality and excellent service ,our products are sold to America,Canada, Brazil, Columbia, Venezuela,India,Iran,UAE,Russia ,Kazakhastan,Italy,Hungary ,Australia,Syria,Egypt ,etc. We have get good reputation from our oversea clients.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
