Detalhes do produto:
Condições de Pagamento e Envio:
|
| Pressão: | 2000-20000 libras por polegada quadrada | Embalagem: | Caixa de madeira |
|---|---|---|---|
| Processando o tipo: | Forjamento | material: | aço carbono |
| Tamanho: | 3 3/4" (95.3mm) ~26" (660.4mm) | Vantagem: | Bens, elevado desempenho |
| Destacar: | 69MPa Oilfield Casing Hanger,WE Type Oilfield Casing Hanger,API 6B Oilfield Casing Hanger |
||
10000 PSI WE Type Casing Hanger for Oilfield Wellhead
Product Descrption

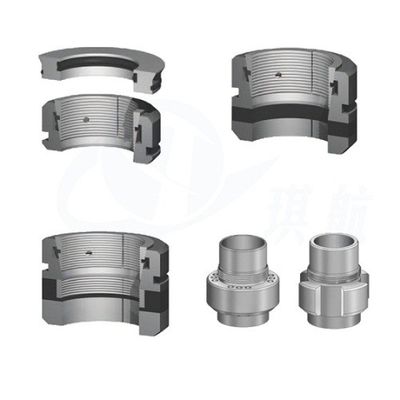

Casing hanger is inside the casing head and used for supporting the casing loads, and sealing the annular space between casing and tubing. Both slip type and mandrel type casing hangers are supplied by us.

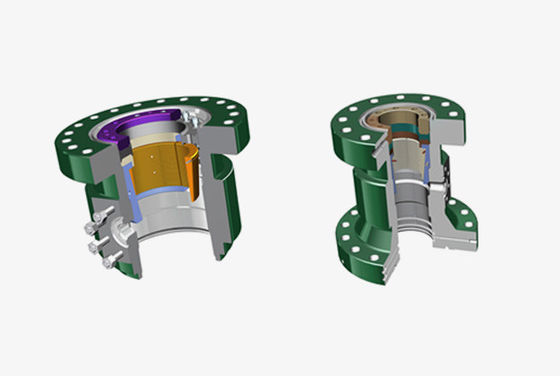

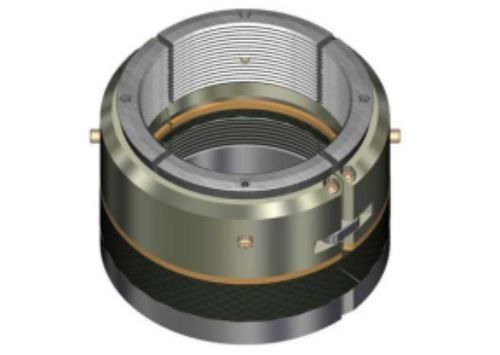

Slip casing hanger is made of low alloy steel with high bearing capability and anti-H2S and access to on-site welding. The types of connecting with casing include welding, threading, slipping and BT sealing. It is mainly used to fix the drilling Wellhead, connect down hole casing string, seal and control annular pressure. Either API 6B or API 6BX flange is used on the top of the casing head. Its side outlet can be customized to line pipe thread or section threaded.
Specification
Key Advantages of Our Wellhead Casing Hanger
Main Parameters of TR Wellhead Casing Hanger
| Rated operating pressure psi(MPa) |
Nominal bore diameter in(mm) |
Bypass bore diameter in(mm) |
Outer diameter of the casing for the hangerin(mm) |
| 2000(13.8) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 3000(20.7) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 5000(34.5) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 10000(69.0) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 15000(103.5) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 20000(138.0) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
With profession engineers we also offer the R&D service to the clients who have special requirements in the oilfield drilling operation and production operation. The wellhead equipment we manufacture and supply include casing head, tubing head, casing spool, tubing spool, Gate valve, Choke valve, Check valve, X-mas tree, VR plug, Tubing hanger, casing hanger, Running tool, Wear bushing, spacer spool, flange adapter, union flange, Hammer union, Elbow, swivel joint, block cross, Block Tee, companion flange, instrument flange, weldneck flange, FC gate, FC seat, FC stem, API Clamp, API Clamp Hub etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
