Detalhes do produto:
Condições de Pagamento e Envio:
|
| Tamanho: | 3 3/4" (95.3mm) ~26" (660.4mm) | Pressão: | 2000-20000 libras por polegada quadrada |
|---|---|---|---|
| Processando o tipo: | Forjamento | material: | aço carbono |
| Tipo bom: | Chassi bem | Garantia: | 12 meses |
| Destacar: | Chassis Wellhead Casing Hanger,5/8" Wellhead Casing Hanger,10000 PSI Wellhead Casing Hanger |
||
API 10000 PSI Oilfield Drilling Tools Wellhead Casing Hanger 13-5/8"
Product Descrption
In petroleum production, the casing hanger is that portion of a wellhead assembly which provides support for the casing string when it is lowered into the wellbore. It serves to ensure that the casing is properly located. When the casing string has been run into the wellbore it is hung off, or suspended, by a casing hanger, which rests on a landing shoulder inside the casing spool. Casing hangers must be designed to take the full weight of the casing, and provide a seal between the casing hanger and the spool.

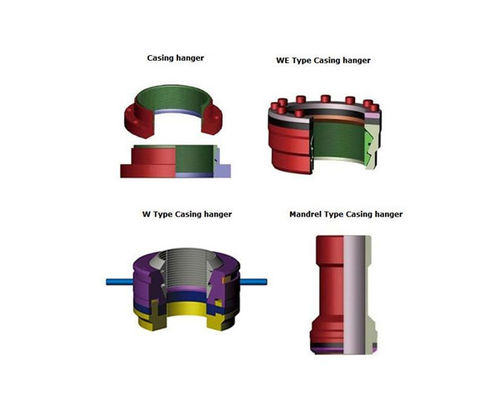

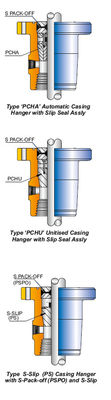

There are two major types of casing hangers, i.e.the threaded (mandrel) type and the slip-type. The slip-type casing hanger comprises a number of models such as G.W. WD and WE. The model WD hangers are used to connect the casing head with the surface casing .when connected to the casing .the slip teeth of the hanger close tightly around the casing by the use of outer force. The model W hangers are structured to enable the dead-weight of the casing to energize the seal to function. Both the model WE and model G hangers operate by energizing the seal manually.
Characterstics of Our Wellhead Casing Hanger
Technical Specifications of TR Wellhead Casing Hanger
| Rated operating pressure psi(MPa) |
Nominal bore diameter in(mm) |
Bypass bore diameter in(mm) |
Outer diameter of the casing for the hangerin(mm) |
| 2000(13.8) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 3000(20.7) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 5000(34.5) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 10000(69.0) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 15000(103.5) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 20000(138.0) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
